Fitting

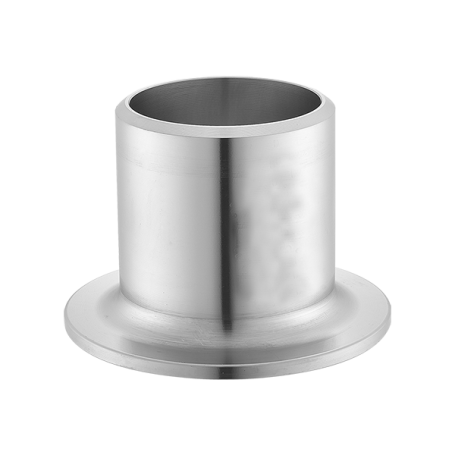

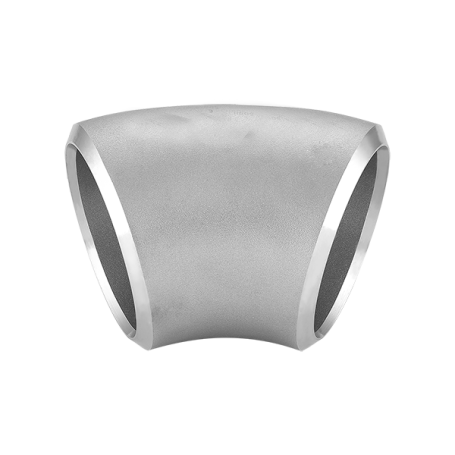

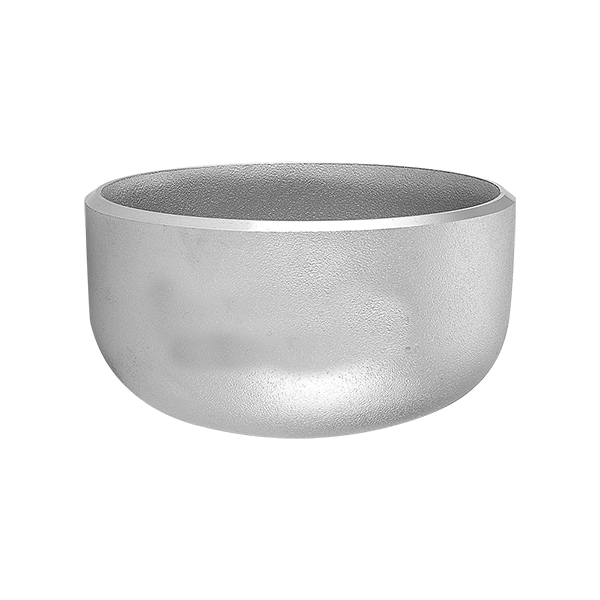

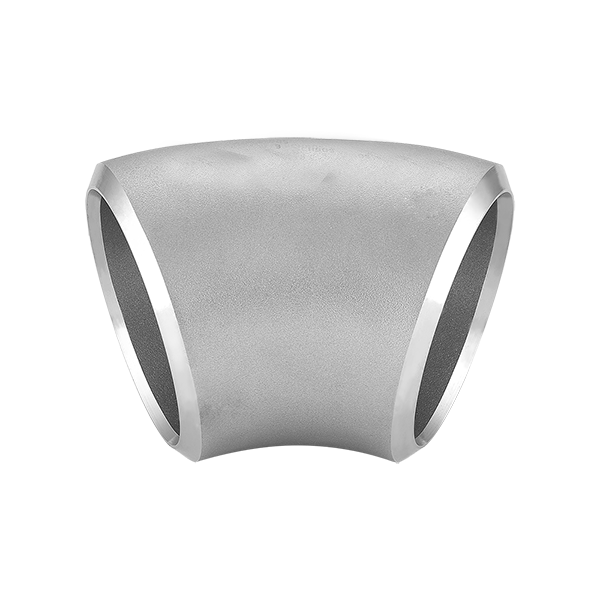

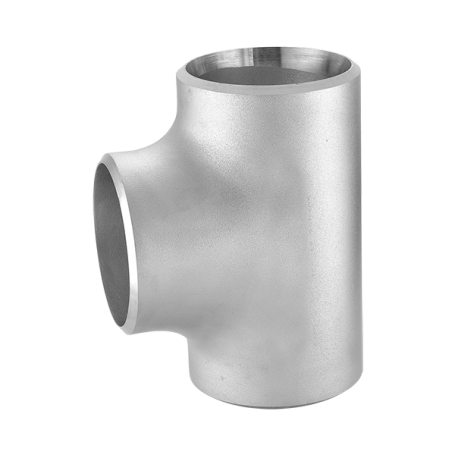

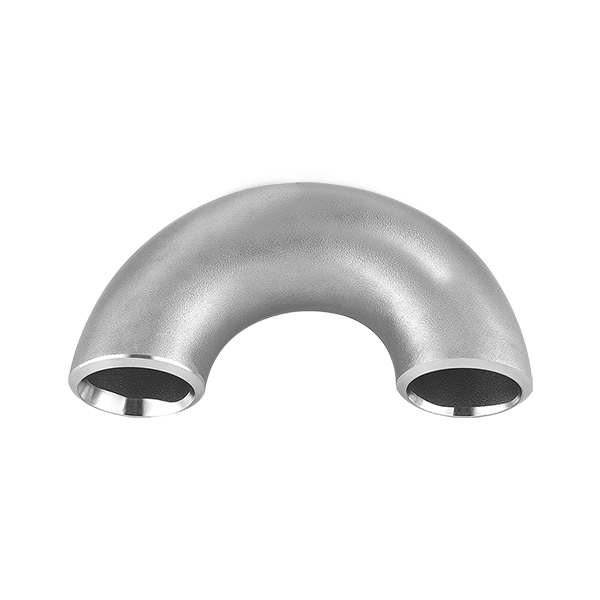

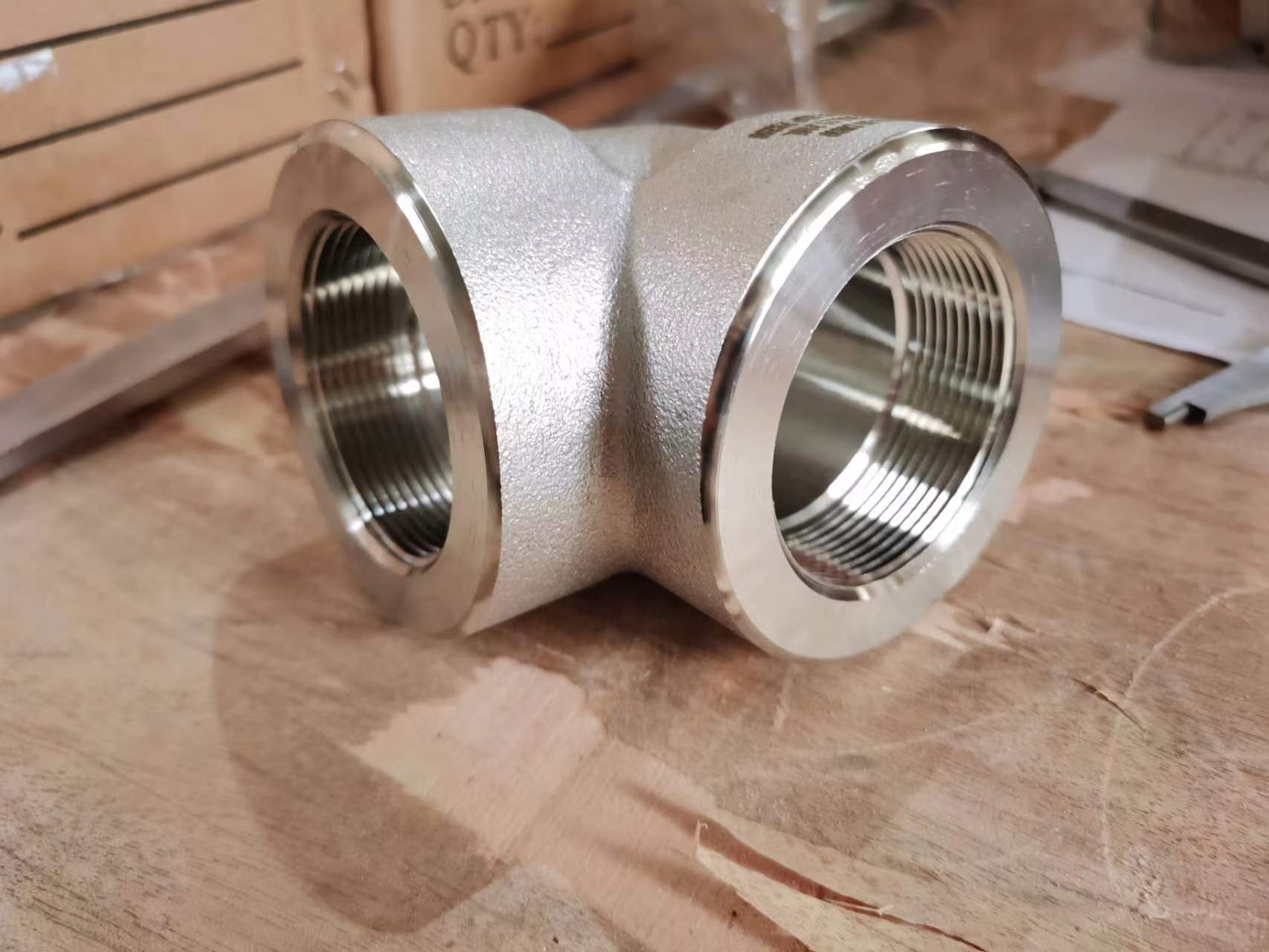

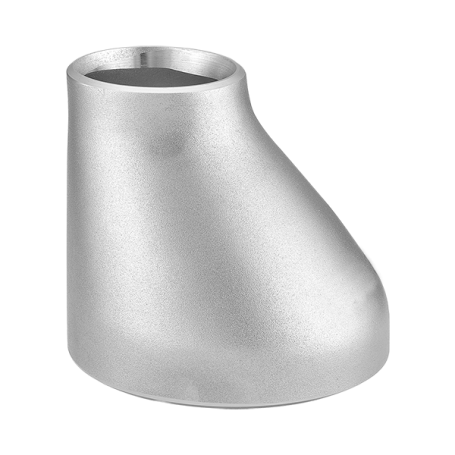

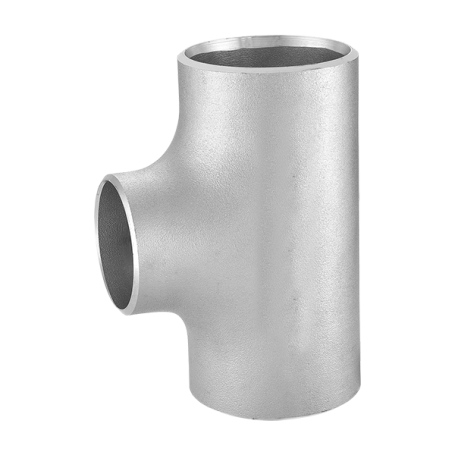

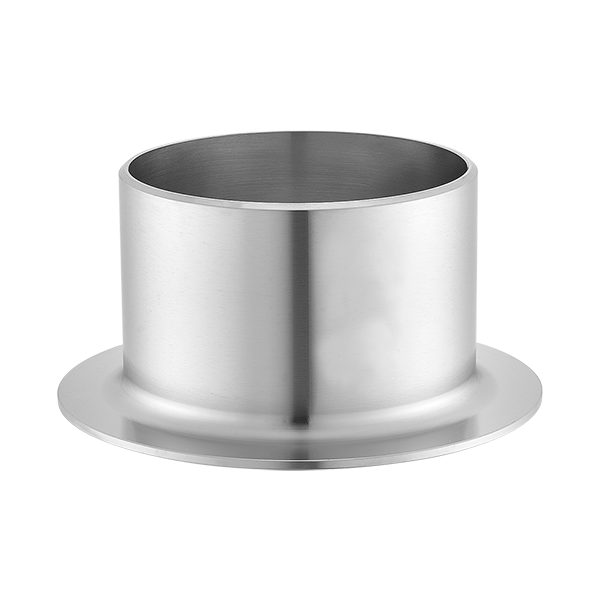

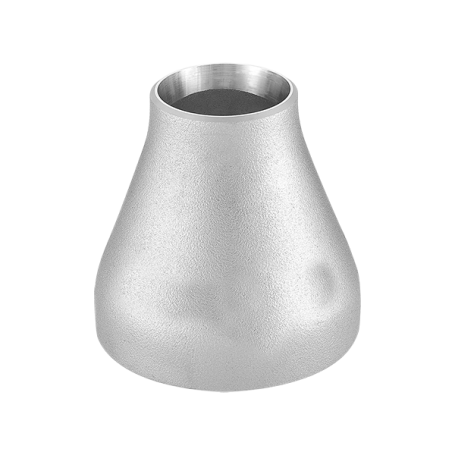

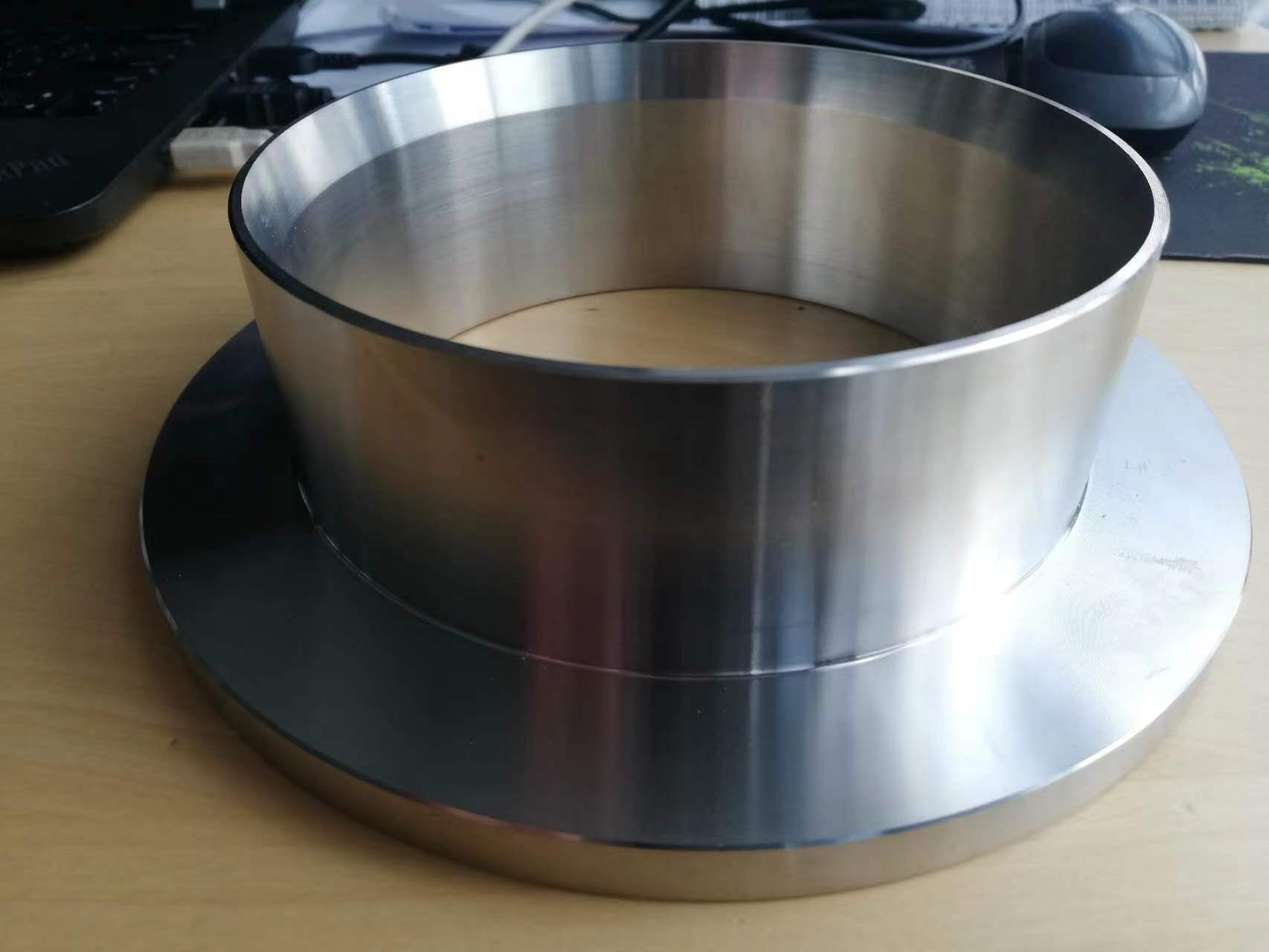

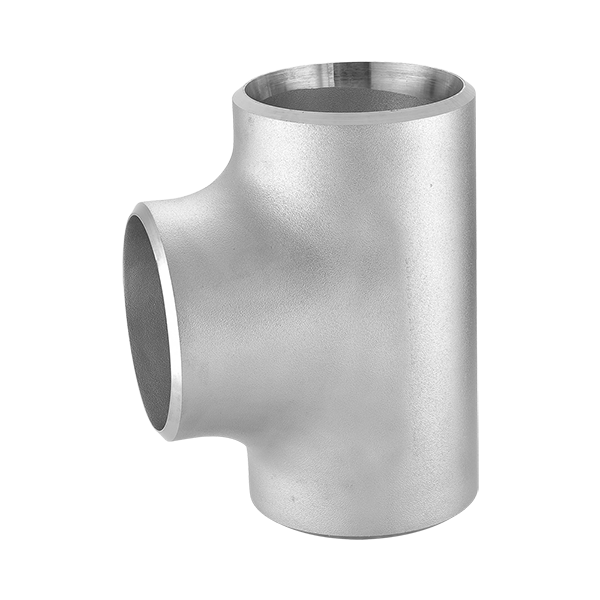

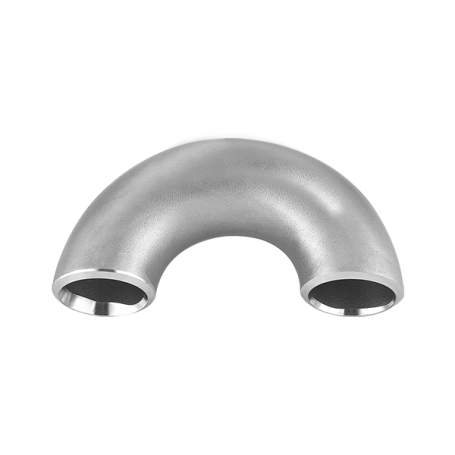

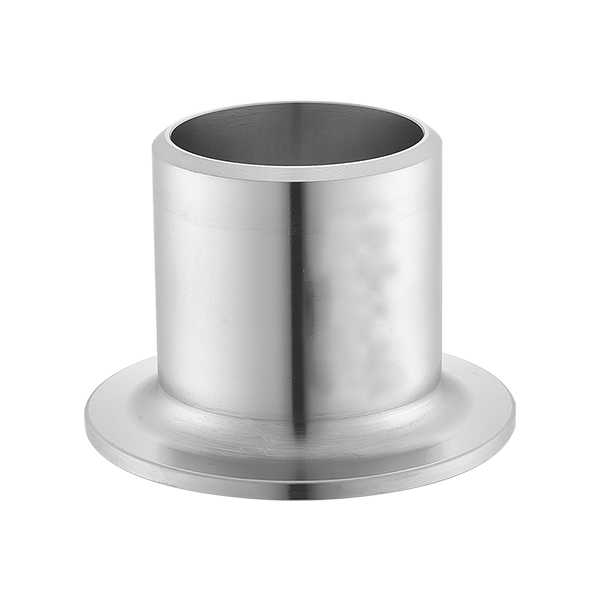

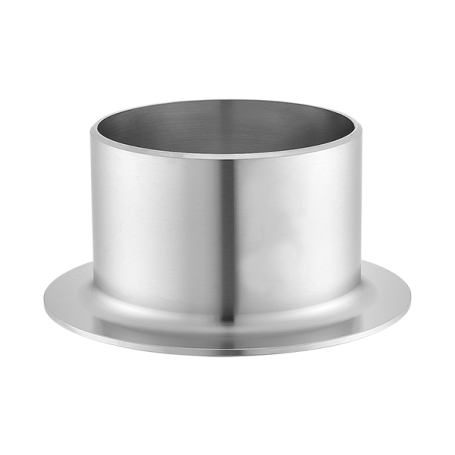

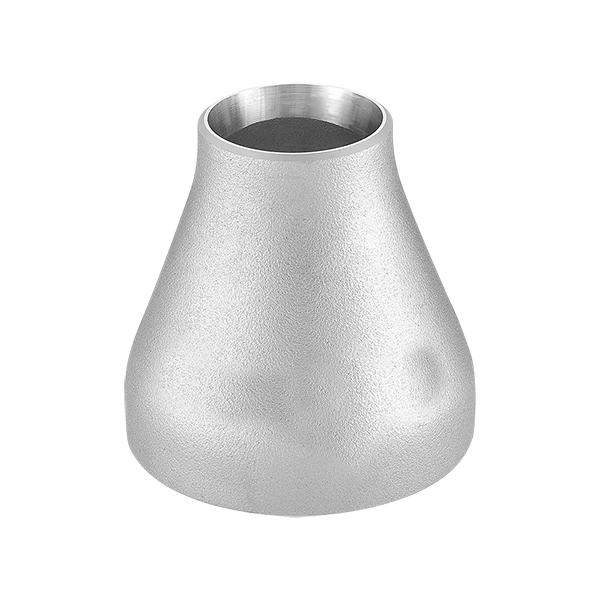

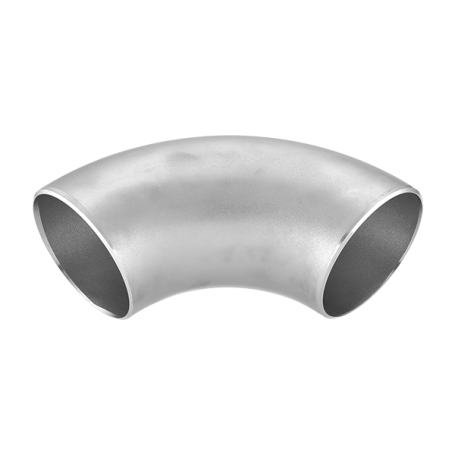

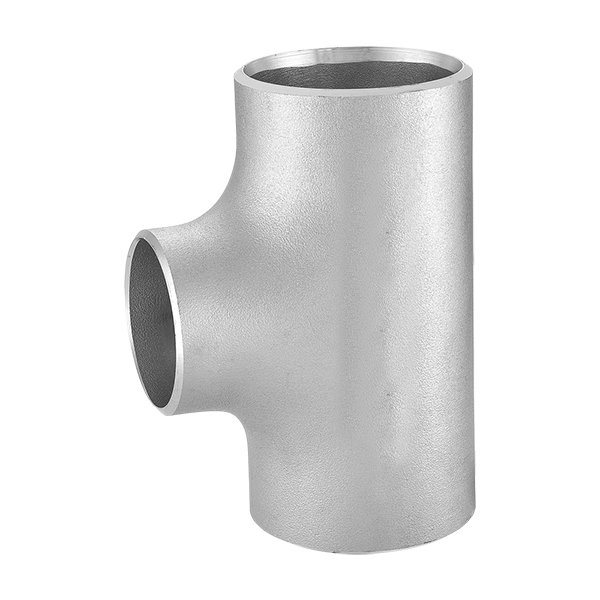

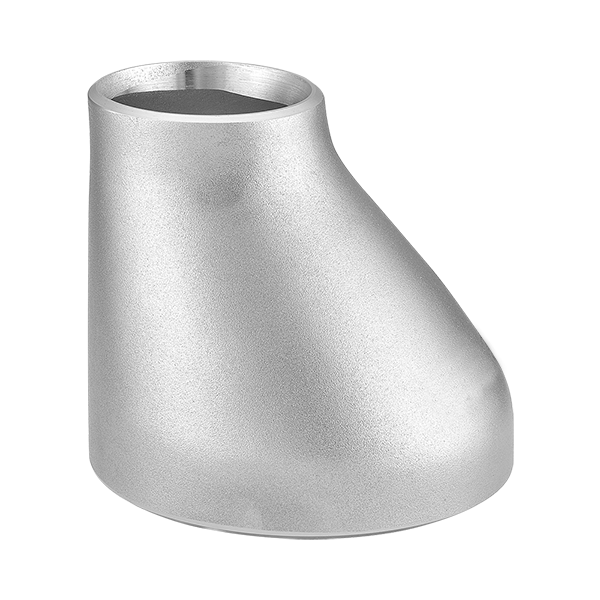

45° Elbow / 90° Elbow / 180° Elbow / Reducer / Tee / Cap / Stub End
- NPS: DN15-DN3000,1/2"-120"
- THK: Sch5s、Sch10s、Sch10、Sch20、Sch30、Sch40s、STD、Sch40、Sch80s、XS、Sch80、Sch100、Sch120、Sch140、Sch160、XXS
- Material:
- Stainless Steel: 31254, 904/L, 347/H, 317/L, 310S, 309, 316Ti, 321/H, 304/L, 304H, 316/L, 316H
- DP Steel: UNS S31803, S32205, S32750, S32760
- Alloy steel: N04400, N08800, N08810, N08811, N08825, N08020, N08031, N06600, N06625, N08926, N08031, N10276
Flange

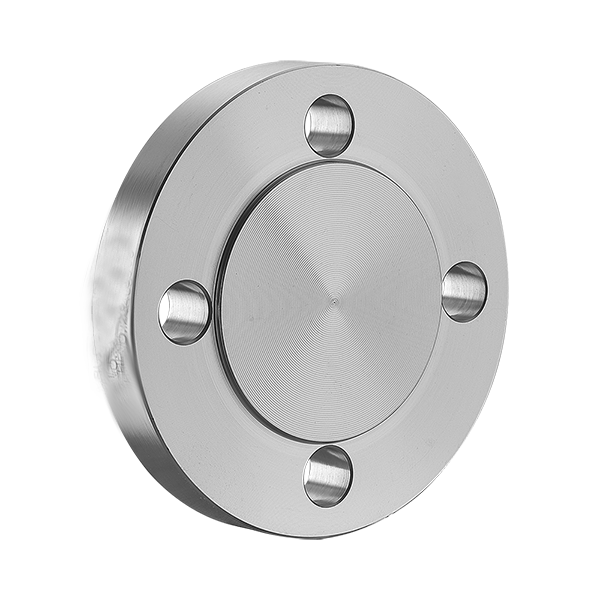

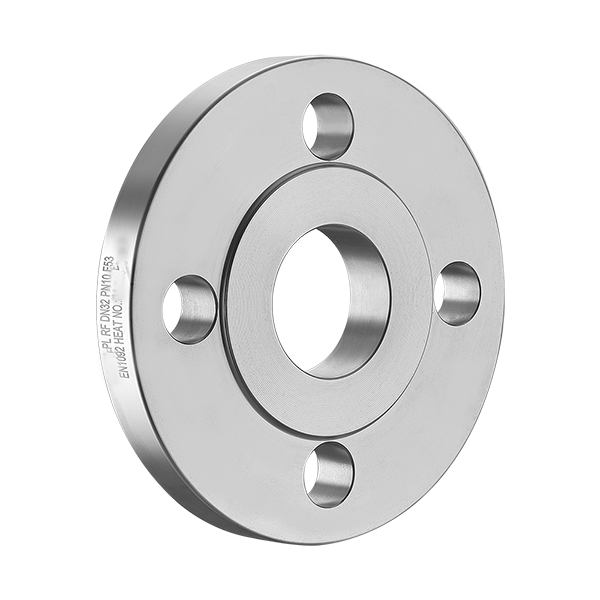

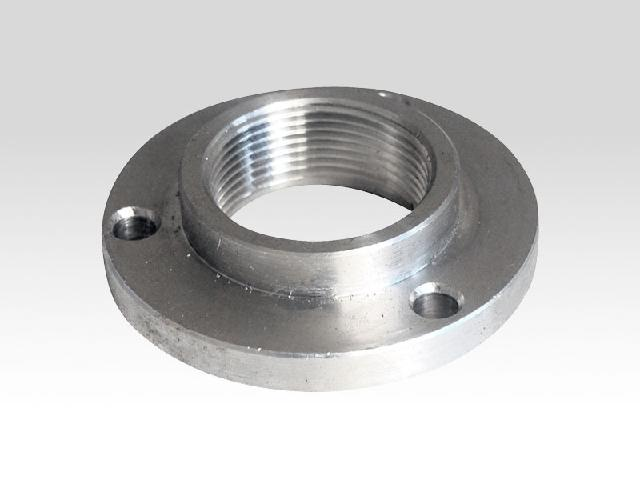

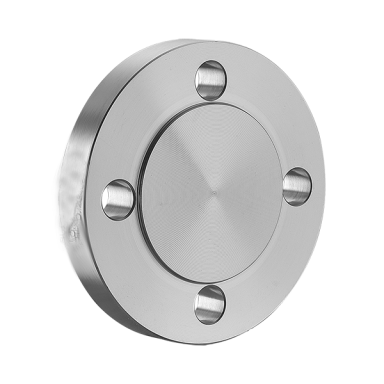

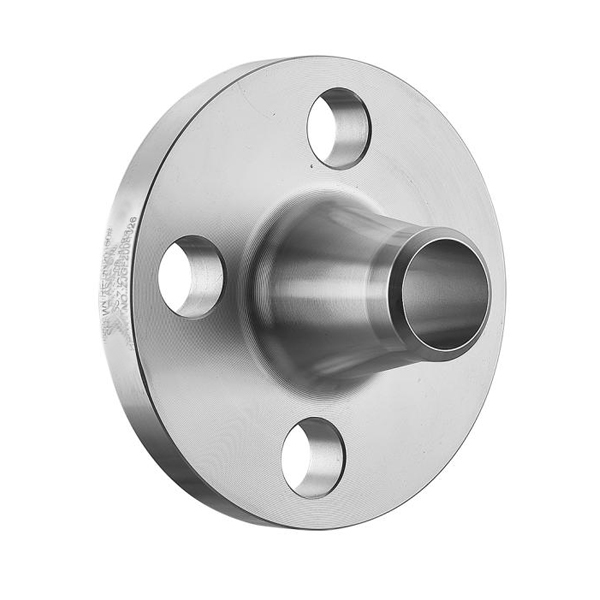

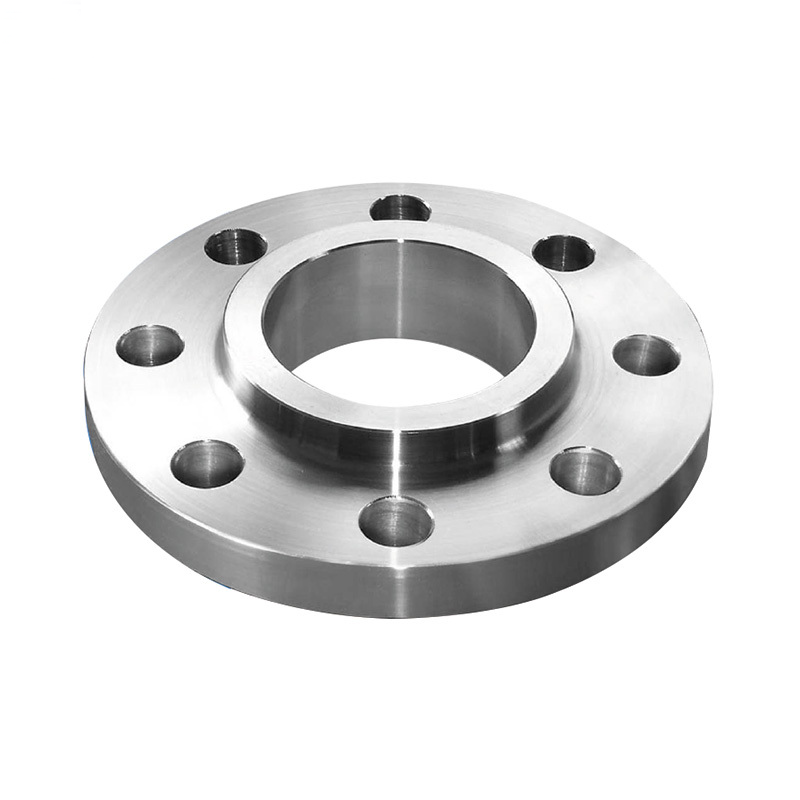

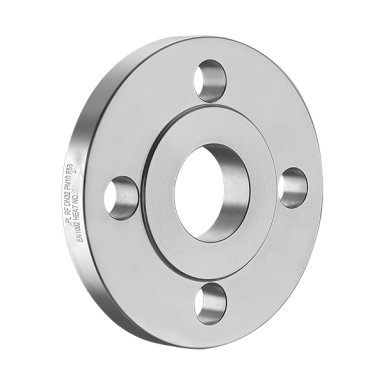

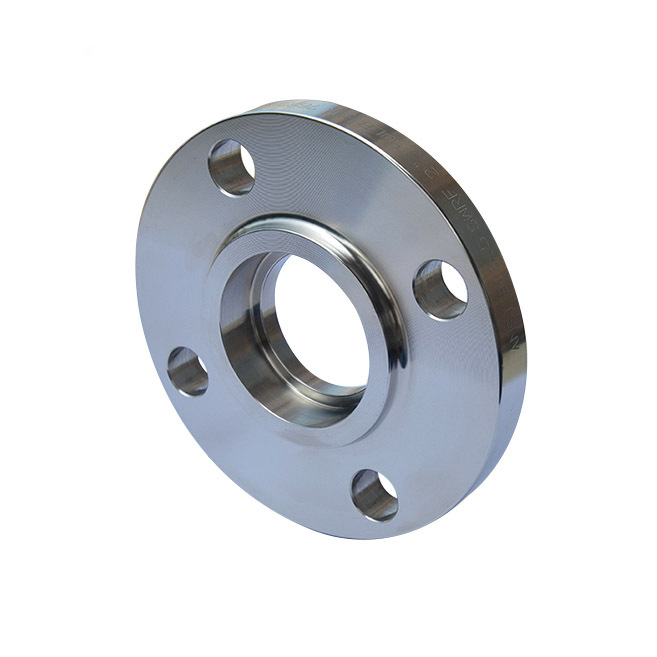

WN-Flange / Blind Flange / Plate Flange
- NPS: DN15-DN3000,1/2"-120"
- Pressure Rating: 150CL-9000CL，PN10-PN160
- Material:
- Stainless Steel: 31254, 904/L, 347/H, 317/L, 310S, 309, 316Ti, 321/H, 304/L, 304H, 316/L, 316H
- DP Steel: UNS S31803, S32205, S32750, S32760
- Alloy steel: N04400, N08800, N08810, N08811, N08825, N08020, N08031, N06600, N06625, N08926, N08031, N10276

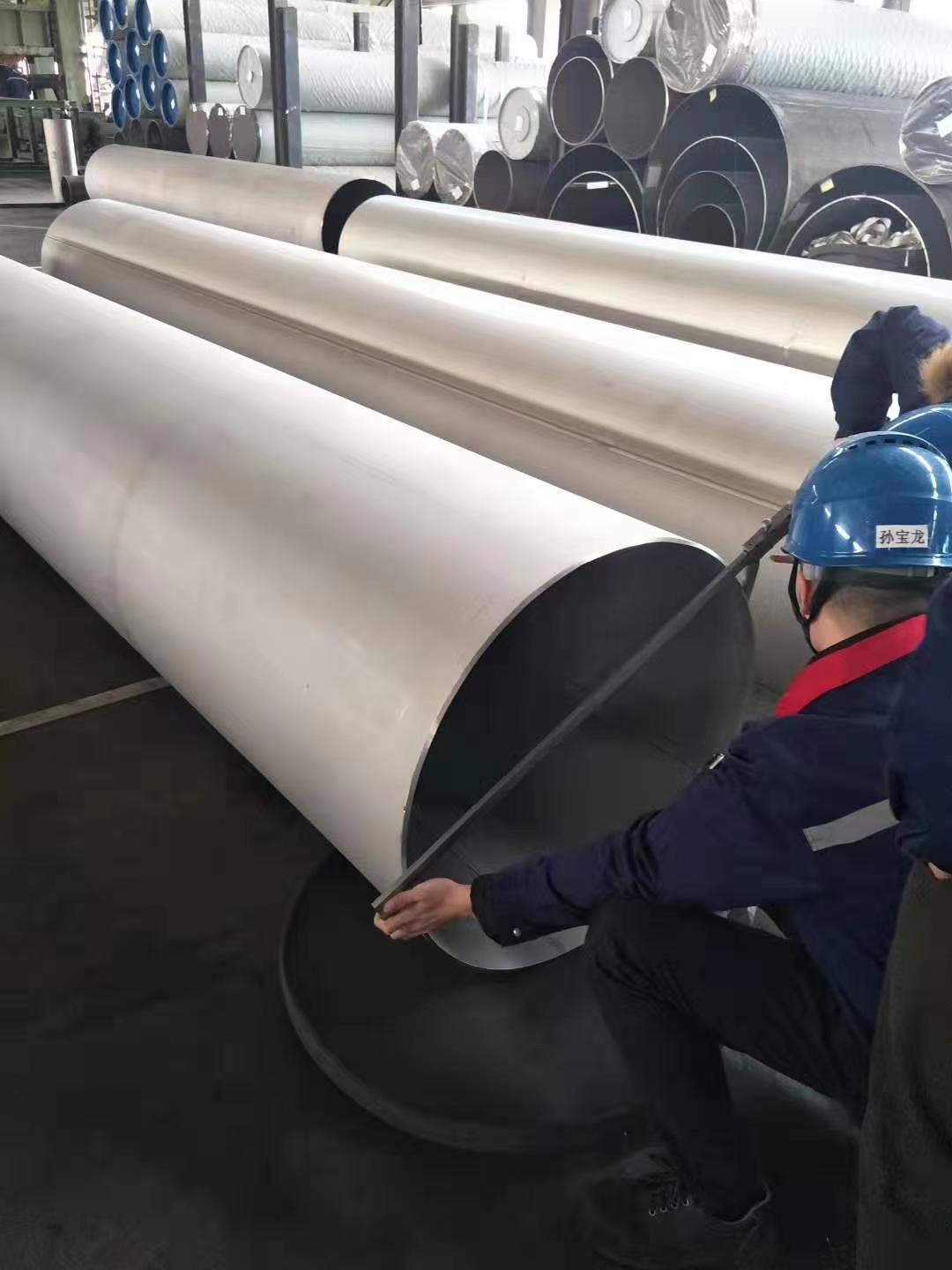

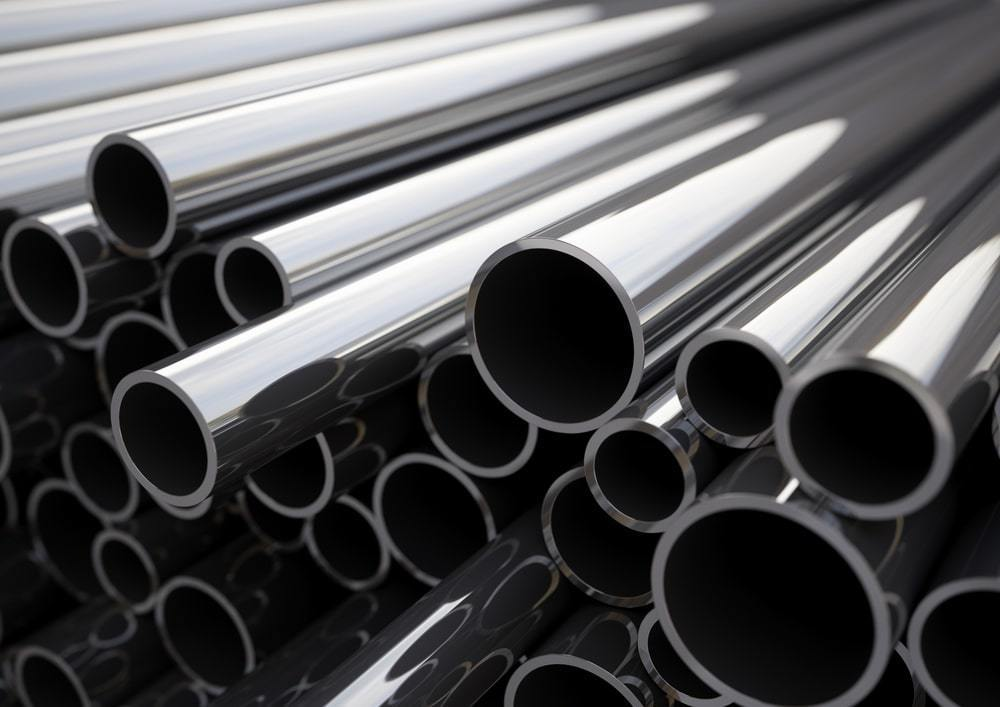

Pipe
Welded
1. Material
- ASTME/ASME: TP304, TP304L, TP304H, TP316, TP316L, TP321, TP321H, TP310S, TP310H, TP317, TP317L, TP347, TP347H, N08904, S31803, S32205, S32750, S32760
- GB/HG:12Cr18Ni9, 06Cr19Ni10, 07Cr19Ni10, 06Cr23Ni13, 06Cr25Ni20, 06Cr17Ni12Mo2, 022Cr17Ni13Mo3, 06Cr18Ni11Ti, 06Cr18Ni11Nb, 07Cr18Ni11Nb, 022Cr22NiMo3N, 022Cr23Ni5Mo3N, 022Cr25Ni11Nb
- EN: 1.4301, 1.4306, 1.4307, 1.4401, 1.4404, 1.4410, 1.4429, 1.4462, 1.4541, 1.4571, 1.4539, 1.4550OD: 10.00-2500.00mm
2. WT: 0.5-35mm (SCH5S-80S,SCH5-160,STD)
3. Length: 1.5-18m
4. Standard
- ASTM: A249, A269, A312, A358, A688, A778, A789, A790, A928
- ASME: SA312, SA249, SA269, SA358, SA688, SA778, SA789, SA790
- GB/T: GB/T12771, GB/T12770, GB/T21832, GB/T24593
- HG: HG20537.1, HG20537.2, HG20537.3, HG20537.4
- EN: EN10217-7
- Others: API 5LC
Seamless
- Material
- TP304, TP304L, TP304H, TP316, TP316H, TP316Ti, TP316L, TP321, TP321H, TP347H, TP347HFG, 904L, TP310H, TP310S, TP317, TP317L, TP316LMo≥2.5; etc
- S31803; S32205; S31500; S32750
- N08825, N08904, N08028, N08800
2. OD: 10.0-830mm
3. WT: 1.65-45mm
4. Standard
- GB/T14976,EN10216-5, DIN17456,DIN17458, ASTM A312, JISG3459 etc.

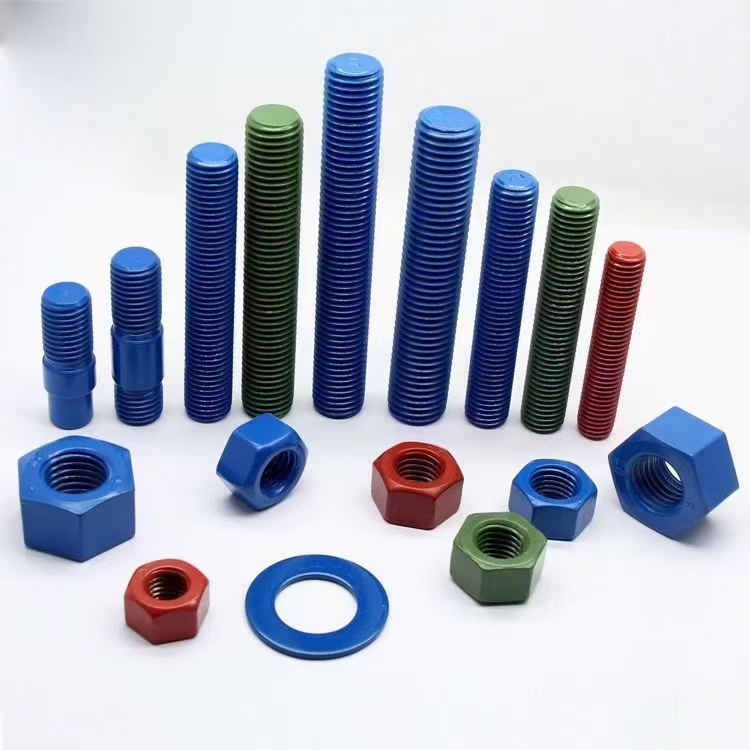

Fastner

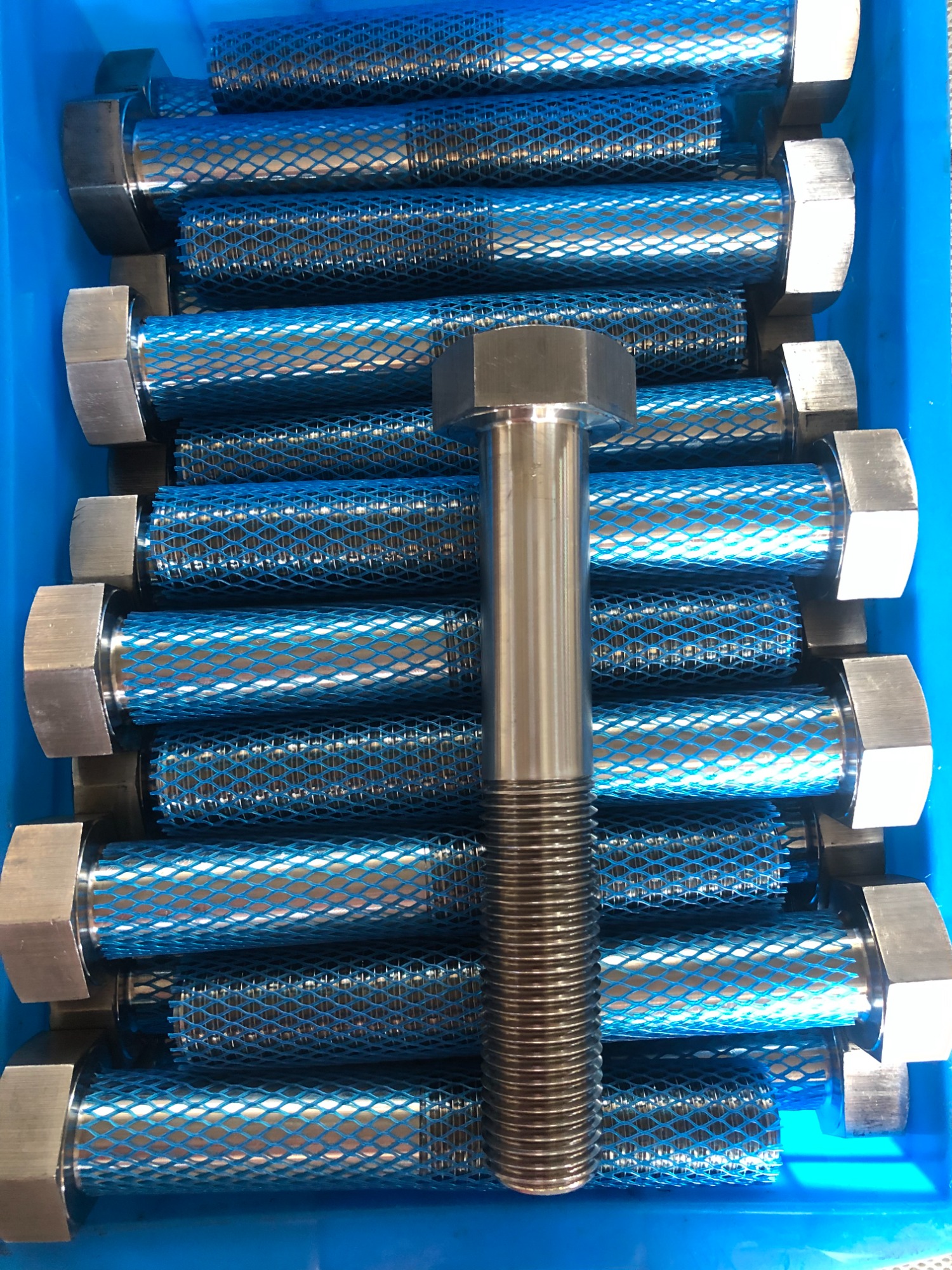

Stainless steel

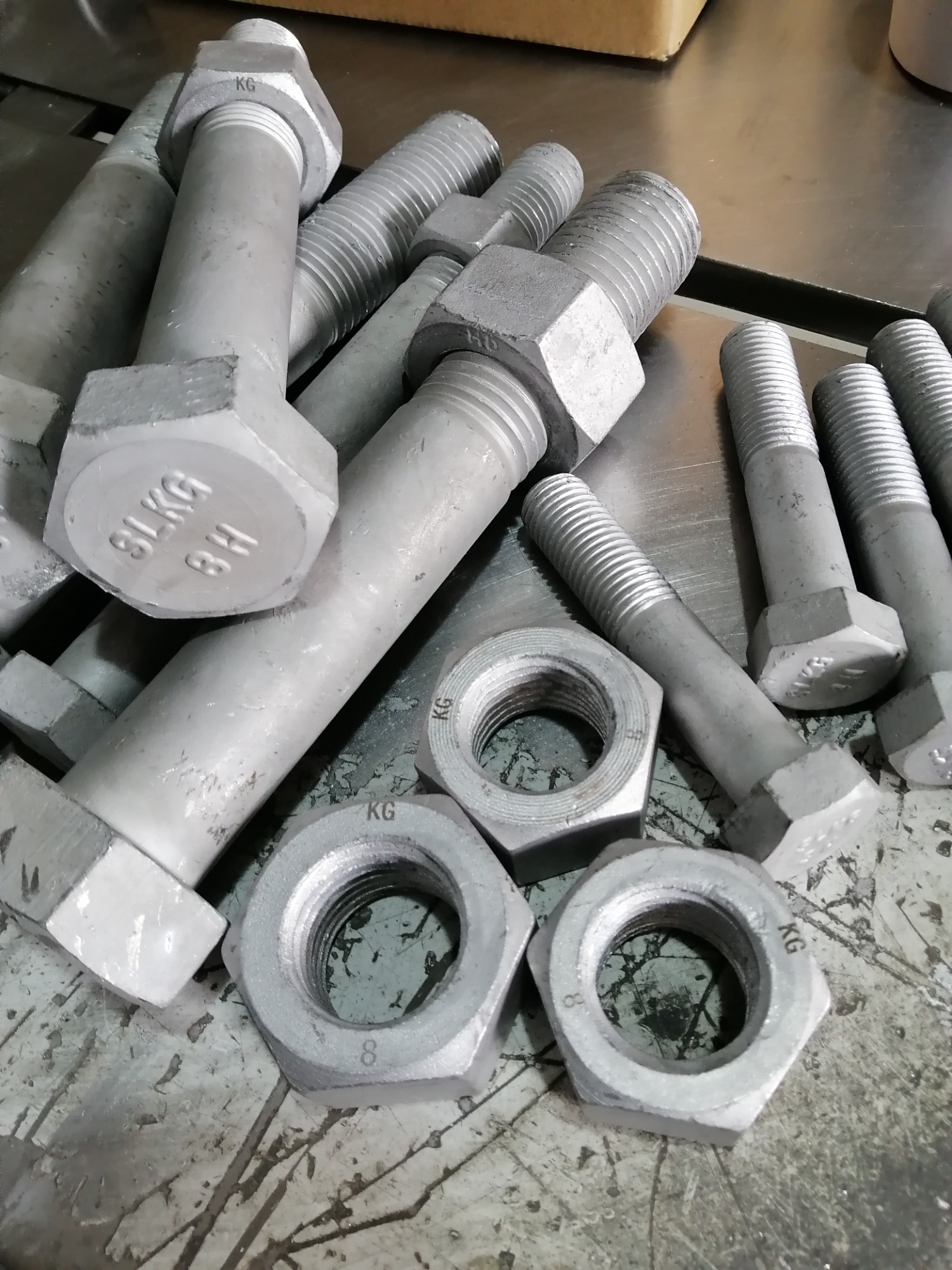

HDG
DACROMET
